MS Pipe (Mild Steel Black Pipe)

Schedule 10, 20, 40 and 80 to ASTM A53, Grade A and Grade B

MS Pipe — Schedule 40 dimensions

ASTM A53

MS Pipe — Schedule 40 dimensions — ASTM A53
Nominal size in Outside diameter Wall thickness Weight
in mm in mm lb/ft kg/m
1/8 0.405 10.3 0.068 1.73 0.24 0.37
1/4 0.540 13.7 0.088 2.24 0.42 0.63
1/2 0.840 21.3 0.109 2.77 0.85 1.27
3/4 1.050 26.7 0.113 2.87 1.13 1.69
1 1.315 33.4 0.133 3.38 1.68 2.50
1 1/4 1.660 42.2 0.140 3.56 2.27 3.39
1 1/2 1.900 48.3 0.145 3.68 2.72 4.05
2 2.375 60.3 0.154 3.91 3.65 5.44
2 1/2 2.875 73.0 0.203 5.16 5.79 8.63
3 3.500 88.9 0.216 5.49 7.58 11.29
3 1/2 4.000 101.6 0.226 5.74 9.11 13.57
4 4.500 114.3 0.237 6.02 10.79 16.07
5 5.563 141.3 0.258 6.55 14.62 21.77
6 6.625 168.3 0.280 7.11 18.97 28.26
8 8.625 219.1 0.322 8.18 28.55 42.55
10 10.750 273.0 0.365 9.27 40.48 60.31
12 12.750 323.8 0.406 10.31 53.52 79.73
14 14 355.6 0.437 11.13 63.44 94.55
16 16 406.4 0.500 12.70 82.77 123.30

Schedule 10, 20 and 80 available to the same standard, Grade A and Grade B. Wall thickness runs to 12 mm, which is what sets the top of this table — heavier walls are supplied against order.

Precision ERW Round Tube — mass in kg/m

BS 6323 Pt 1 & 5, BS 1717, ASTM A513, JIS G3445 STKM

Precision ERW Round Tube — mass in kg/m — BS 6323 Pt 1 & 5, BS 1717, ASTM A513, JIS G3445 STKM
Outside dia mm Wall thickness — mass in kg/m
0.8 1.0 1.2 1.6 2.0 2.6 3.2
12.70 0.235 0.289 0.340
15.90 0.298 0.367 0.435
19.05 0.360 0.445 0.528 0.689
22.20 0.422 0.523 0.621 0.813 0.996
25.40 0.485 0.602 0.716 0.939 1.154
31.80 0.612 0.760 0.906 1.192 1.470 1.872
38.10 0.736 0.915 1.092 1.440 1.780 2.276 2.754
44.50 0.862 1.073 1.281 1.693 2.096 2.686 3.259
50.80 0.986 1.228 1.468 1.941 2.407 3.090 3.756
63.50 1.237 1.541 1.844 2.442 3.033 3.905 4.758
76.20 1.487 1.854 2.219 2.943 3.660 4.719 5.761

Light-wall mechanical and general-engineering tube, quoted on outside diameter. Heavier walls at each diameter are covered by the Schedule 40 chart on the MS Pipe page.

Full MS Pipe details →

Galvanized Iron (GI) Pipe

Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H

GI Pipe — Grade "L"

BS EN 10255:2004 (formerly "L" of BS 1387:1985)

GI Pipe — Grade "L" — BS EN 10255:2004 (formerly "L" of BS 1387:1985)
Nominal dia Outside diameter Wall thickness mm Black pipe weight kg/m
mm in Max mm Min mm
15 1/2" 21.40 21.00 2.00 0.95
20 3/4" 26.90 26.40 2.30 1.38
25 1" 33.80 33.20 2.60 1.98
32 1 1/4" 42.50 41.90 2.60 2.54
40 1 1/2" 48.50 47.80 2.90 3.23
50 2" 60.20 59.60 2.90 4.08
65 2 1/2" 76.00 75.20 3.20 5.71
80 3" 88.70 87.90 3.20 6.72
100 4" 113.90 113.00 3.60 9.75

GI Pipe — Grade "M"

BS EN 10255:2004 (formerly "M" of BS 1387:1985)

GI Pipe — Grade "M" — BS EN 10255:2004 (formerly "M" of BS 1387:1985)
Nominal dia Outside diameter Wall thickness mm Black pipe weight kg/m
mm in Max mm Min mm
15 1/2" 21.80 21.00 2.60 1.21
20 3/4" 27.30 26.50 2.60 1.56
25 1" 34.20 33.30 3.20 2.41
32 1 1/4" 42.90 42.00 3.20 3.10
40 1 1/2" 48.80 47.90 3.20 3.56
50 2" 60.80 59.70 3.60 5.03
65 2 1/2" 76.60 75.30 3.60 6.42
80 3" 89.50 88.00 4.00 8.36
100 4" 115.00 113.10 4.50 12.16
125 5" 140.80 138.50 5.00 16.60
150 6" 166.50 163.90 5.00 19.75

GI Pipe — Grade "H"

BS EN 10255:2004 (formerly "H" of BS 1387:1985)

GI Pipe — Grade "H" — BS EN 10255:2004 (formerly "H" of BS 1387:1985)
Nominal dia Outside diameter Wall thickness mm Black pipe weight kg/m
mm in Max mm Min mm
40 1 1/2" 48.80 47.90 4.0 4.37
50 2" 60.80 59.70 4.5 6.19
65 2 1/2" 76.60 75.30 4.5 7.93
80 3" 89.50 88.00 5.0 10.30
100 4" 115.00 113.10 5.4 14.50
125 5" 140.80 138.50 5.4 17.88
150 6" 166.50 163.90 5.4 21.27

Galvanized iron pipe to ASTM A-53 Sch 40 also available, subject to enquiry.

Full GI Pipe details →

Cold Rolled Steel Tubing

Round, square, oval and elliptical tube in 0.6 mm to 2.0 mm wall

CR round tube — weight by wall thickness

BS 1717:1983, BS EN 10305-3:2010 & EN 10296-1:2003 (formerly BS 6323-5:1982)

CR round tube — weight by wall thickness — BS 1717:1983, BS EN 10305-3:2010 & EN 10296-1:2003 (formerly BS 6323-5:1982)
OD mm Per bundle Wall thickness (mm)
0.6 0.7 0.9 1.0 1.2 1.6 2.0
9.00 394 0.124 0.143 0.180 0.231
10.00 351 0.140 0.161 0.202 0.260
12.70 271 0.179 0.207 0.262 0.289 0.340
15.90 271 0.226 0.262 0.333 0.367 0.435 0.564 0.686
16.00 200 0.691
17.50 271 0.482 0.627 0.765
19.05 271 0.273 0.317 0.403 0.445 0.528 0.689 0.841
20.60 271 0.750 0.917
22.00 217 0.805
22.20 217 0.371 0.473 0.621 0.813 0.996
23.80 169 0.876
25.40 217 0.367 0.426 0.544 0.602 0.716 0.939 1.154
28.60 169 0.615 0.681 0.811 1.065
30.00 169 0.646 0.852 1.121
31.80 169 0.537 0.686 0.760 0.906 1.192 1.470
35.00 127 1.000 1.318
38.10 91 0.826 1.092 1.440
42.20 61 0.917 1.213 1.602
48.10 61 1.048 1.388 1.835
60.30 61 1.318 1.749
63.50 61 1.844 2.442
73.02 37 2.125 2.818
75.90 37 2.211 2.932

Outside diameter in mm, figures in kilograms per metre. A dash means that wall is not rolled in that diameter.

CR square tube — weight by wall thickness

BS EN 10305-5:2010 (formerly BS 6323-5:1982)

CR square tube — weight by wall thickness — BS EN 10305-5:2010 (formerly BS 6323-5:1982)
Size mm Per bundle Wall thickness (mm)
0.60 0.70 0.80 0.90 1.00 1.20 1.60
10 × 10 225 0.179 0.207 0.235 0.262 0.289
12 × 12 225 0.226 0.262 0.298 0.333 0.367 0.435 0.564
15 × 15 225 0.273 0.317 0.360 0.403 0.445 0.528 0.689
20 × 20 225 0.367 0.426 0.485 0.544 0.602 0.716 0.939
25 × 25 144 0.537 0.612 0.686 0.760 0.906 1.192
30 × 30 100 0.646 0.736 0.826 0.915 1.092 1.440
38 × 38 100 0.933 1.048 1.162 1.388 1.835
50 × 50 100 1.240 1.390 1.844 2.442

Section size in mm, figures in kilograms per metre. A dash means that wall is not rolled in that size.

CR rectangular tube — weight by wall thickness

BS EN 10305-5:2010 (formerly BS 6323-5:1982)

CR rectangular tube — weight by wall thickness — BS EN 10305-5:2010 (formerly BS 6323-5:1982)
Size mm Per bundle Wall thickness (mm)
0.60 0.70 0.80 0.90 1.00 1.20 1.60
10 × 20 294 0.317 0.360 0.403 0.445 0.528
12 × 38 200 0.537 0.612 0.686 0.760 0.906
15 × 30 150 0.615 0.811
20 × 40 150 0.646 0.736 0.826 0.915 1.092 1.440
25 × 40 150 1.213 1.602
25 × 50 96 0.933 1.048 1.162 1.388 1.835
30 × 50 96 1.048
30 × 60 117 1.109 1.245 1.381 1.651 2.186
40 × 80 70 1.482 1.665 1.847 2.211 2.932

Section size in mm, figures in kilograms per metre. A dash means that wall is not rolled in that size.

CR oval tube — weight by wall thickness

Conforming to IIL standard

CR oval tube — weight by wall thickness — Conforming to IIL standard
Size mm Per bundle Wall thickness (mm)
0.90 1.20 1.60 2.00
16 × 30 200 0.544 0.716
16 × 40 200 0.906 1.192 1.470
30 × 50 100 1.213 1.602 1.983

Section size in mm, figures in kilograms per metre.

CR elliptical tube — weight by wall thickness

Conforming to IIL standard

CR elliptical tube — weight by wall thickness — Conforming to IIL standard
Size mm Per bundle Wall thickness (mm)
0.90 1.20 1.60
13 × 23 200 0.403 0.528 0.689
19 × 42 200 0.686 0.906
24 × 56 100 1.213

Section size in mm, figures in kilograms per metre.

Full CR Tubes details →

Scaffolding Tubes

Type 1 and Type 2 to BS EN 39:2001 — safety first

Scaffolding Tubes — Type 1 and Type 2

BS EN 39:2001

Scaffolding Tubes — Type 1 and Type 2 — BS EN 39:2001
Type Nominal dia in Outside diameter Wall thickness mm Black pipe weight kg/m
Max mm Min mm
Type 1 1 1/2" 48.3 47.8 3.0 3.33
Type 2 1 1/2" 48.3 47.8 4.0 4.37

Available in various lengths, subject to enquiry.

Full Scaffolding details →

Square & Rectangular Hollow Section

Cold rolled and hot rolled ERW tube for structure and furniture

Square Hollow Section — mass in kg/m

ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923

Square Hollow Section — mass in kg/m — ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923
Size mm Wall thickness — mass in kg/m
1.2 1.6 2.0 2.5 3.0 4.0
20 × 20 0.689 0.890 1.076 1.289
25 × 25 0.877 1.141 1.390 1.682 1.951
30 × 30 1.066 1.392 1.704 2.074 2.422
38 × 38 1.367 1.794 2.207 2.702 3.175 4.054
40 × 40 1.443 1.895 2.332 2.859 3.364 4.306
50 × 50 1.819 2.397 2.960 3.644 4.306 5.562
60 × 60 2.196 2.899 3.588 4.429 5.248 6.818
75 × 75 2.761 3.653 4.530 5.607 6.661 8.702
80 × 80 2.950 3.904 4.844 5.999 7.132 9.330
100 × 100 3.703 4.909 6.100 7.569 9.016 11.842

Outer corner radius taken as 1.5 × wall, the cold-formed convention. Sizes outside this range are rolled to order — confirm the die set with the sales office before specifying.

Rectangular Hollow Section — mass in kg/m

ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923

Rectangular Hollow Section — mass in kg/m — ASTM A500 Gr. A/B, EN 10219, BS 6323, IS 4923
Size mm Wall thickness — mass in kg/m
1.2 1.6 2.0 2.5 3.0 4.0
20 × 40 1.066 1.392 1.704 2.074
25 × 50 1.348 1.769 2.175 2.663 3.128
30 × 60 1.631 2.146 2.646 3.252 3.835
38 × 76 2.083 2.749 3.400 4.194 4.965 6.441
40 × 80 2.196 2.899 3.588 4.429 5.248 6.818
50 × 100 2.761 3.653 4.530 5.607 6.661 8.702
60 × 120 3.327 4.407 5.472 6.784 8.074 10.586

Same basis as the square chart: corner radius 1.5 × wall. Sizes are quoted depth × width; other combinations are rolled to order.

Full Hollow Section details →

API 5L Line Pipe

PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission

API 5L grades — specified minimum strength

API 5L / ISO 3183, PSL 1 and PSL 2

API 5L grades — specified minimum strength — API 5L / ISO 3183, PSL 1 and PSL 2
Grade Min yield strength Min tensile strength
MPa psi MPa psi
Gr. B 245 35,500 415 60,200
X42 290 42,100 415 60,200
X46 320 46,400 435 63,100
X52 360 52,200 460 66,700
X56 390 56,600 490 71,100
X60 415 60,200 520 75,400

Grade designations are the specified minimum yield strength in ksi. PSL 2 carries the same strength floors as PSL 1 plus tighter chemistry limits, guaranteed impact toughness and mandatory non-destructive inspection — specify which level the project requires.

Full API 5L Line Pipe details →

Steel Conduit & LTZD Profiles

ERW conduit for cable runs, and L, T, Z and D profiles for doors and windows

Steel conduit — sizes and wall thickness

BS 4568-1 Class 3 and IS 9537 (Part 2)

Steel conduit — sizes and wall thickness — BS 4568-1 Class 3 and IS 9537 (Part 2)
Nominal size mm Outside dia mm Wall thickness (mm) kg/m
BS 4568 Cl. 3 IS 9537 Pt 2
16 16.0 1.40 0.504
20 20.0 1.60 1.40 – 1.60 0.726
25 25.0 1.60 1.40 – 1.80 0.923
32 32.0 1.60 1.40 – 1.80 1.200
40 40.0 1.60 – 2.20 1.515
50 50.0 1.60 – 2.20 1.910

Outside diameter is the nominal size; BS 4568 holds it to ±0.3 mm and IS 9537 applies a minus-only tolerance. BS 4568 conduit is supplied in 3.75 m lengths threaded to ISO metric form at both ends. Class 4 is the same size range hot-dip galvanized rather than pre-galvanized. Weights are nominal, at 7.85 g/cm³.

LTZD profiles — sections, weights and bundle counts

Manufactured under ISO 9001, ISO 14001 and ISO 45001; CE marked

LTZD profiles — sections, weights and bundle counts — Manufactured under ISO 9001, ISO 14001 and ISO 45001; CE marked
Shape Thickness mm Per bundle Weight Dimensions (mm)
kg/m kg/bundle A B C D
L-40 0.7 210 0.678 794 38 13 26.5 25
L-40 0.8 210 0.773 906 38 13 26.5 25
L-40 0.9 210 0.868 1017 38 13 26.5 25
L-48 0.7 143 0.818 653 48.5 13 26.5 35.5
L-55 0.7 100 0.937 523 52 15 34 37
L-55 0.8 100 1.069 597 52 15 34 37
L-55 0.9 100 1.201 670 52 15 34 37
T-48 0.7 150 0.818 685 50 13 26 24
T-48 0.8 150 0.933 781 50 13 26 24
T-48 0.9 150 1.048 877 50 13 26 24
T-60 0.7 100 1.029 574 61 15 34 31
T-60 0.8 100 1.174 655 61 15 34 31
T-60 0.9 100 1.318 735 61 15 34 31
D-60 0.7 60 1.029 356 51.5 51.7 51.7 12.7
D-60 0.9 60 1.318 456 51.5 51.7 51.7 12.7
D-60 1.2 60 1.749 604 51.5 51.7 51.7 12.7
Z-48 0.7 150 0.818 685 50 13 26.5 24
Z-48 0.8 150 0.933 781 50 13 26.5 24
Z-48 0.9 150 1.048 877 50 13 26.5 24
Z-60 0.7 100 1.029 574 61 15 34 31
Z-60 0.8 100 1.174 655 61 15 34 31
Z-60 0.9 100 1.318 735 61 15 34 31

One line per thickness, as published — a shape is not one product but one per gauge, and the bundle weight moves with it. A, B, C and D are section dimensions in mm.

Full Conduit & LTZD details →

Sheet Profiles — MS, GI & PPGI

Plain, galvanized and colour-coated sheet, flat or roll-formed

MS Sheet — thickness and weight

ASTM A1011 / A1008, JIS G3131 / G3141, EN 10025-2 / EN 10130

MS Sheet — thickness and weight — ASTM A1011 / A1008, JIS G3131 / G3141, EN 10025-2 / EN 10130
Thickness mm Gauge SWG Weight
kg/m² kg per 4×8 ft sheet
0.50 25 3.93 11.66
0.60 23 4.71 14.00
0.80 21 6.28 18.66
1.00 19 7.85 23.33
1.20 18 9.42 28.00
1.50 17 11.78 34.99
2.00 14 15.70 46.66
2.50 12 19.63 58.32
3.00 11 23.55 69.99
4.00 8 31.40 93.32
5.00 6 39.25 116.65
6.00 4 47.10 139.98
8.00 62.80 186.64
10.00 78.50 233.29
12.00 94.20 279.95
14.00 109.90 326.61
16.00 125.60 373.27
18.00 141.30 419.93
20.00 157.00 466.59

Thickness 0.50 mm to 20 mm: cold rolled 0.50 mm to 3.00 mm, hot rolled 1.5 mm and heavier. Weights are for plain uncoated steel. Sheet weight is for a 4×8 ft (1219 × 2438 mm) sheet — pro-rata for 1250 × 2500 mm or 1500 × 3000 mm.

GI Sheet — thickness and weight

ASTM A653/A653M, EN 10346, JIS G3302, IS 277

GI Sheet — thickness and weight — ASTM A653/A653M, EN 10346, JIS G3302, IS 277
Thickness mm Gauge SWG Weight
kg/m² kg per 4×8 ft sheet
0.12 40 0.94 2.80
0.16 38 1.26 3.73
0.20 36 1.57 4.67
0.25 33 1.96 5.83
0.30 31 2.36 7.00
0.40 27 3.14 9.33
0.50 25 3.93 11.66
0.60 23 4.71 14.00
0.80 21 6.28 18.66
1.00 19 7.85 23.33
1.20 18 9.42 28.00
1.50 17 11.78 34.99
2.00 14 15.70 46.66

Weights are BASE STEEL only. Note that ASTM A653 and EN 10346 both define the ordered thickness as INCLUDING the zinc — a 0.50 mm G90 sheet carries about 0.46 mm of steel. Order to ASTM A653 Supplementary Requirement S1 if you need the thickness to mean base metal. Zinc adds its own coating mass on top: Z275 = 275 g/m² = 0.275 kg/m² across both faces.

PPGI Sheet — thickness and weight

EN 10169, ASTM A755/A755M, JIS G3312, IS 14246

PPGI Sheet — thickness and weight — EN 10169, ASTM A755/A755M, JIS G3312, IS 14246
Thickness mm Gauge SWG Weight
kg/m² kg per 4×8 ft sheet
0.12 40 0.94 2.80
0.16 38 1.26 3.73
0.20 36 1.57 4.67
0.25 33 1.96 5.83
0.30 31 2.36 7.00
0.35 29 2.75 8.17
0.40 27 3.14 9.33
0.45 26 3.53 10.50
0.50 25 3.93 11.66
0.60 23 4.71 14.00
0.80 21 6.28 18.66
1.00 19 7.85 23.33

Weights are base metal thickness (BMT), excluding zinc and paint. Total coated thickness (TCT) runs 0.04–0.09 mm above BMT once the zinc and the paint system are counted — always confirm which basis a quotation is written on.

Roll-formed profiles — cover and rib

Profiles to the mill’s own die set

Roll-formed profiles — cover and rib — Profiles to the mill’s own die set
Profile Width Rib depth mm Rib pitch mm
Cover mm Overall mm
Corrugated 76/18 762 914 18 76
Trapezoidal 25/210 840 900 25 210
Trapezoidal 30/200 1000 1060 30 200
IBR 37/171 686 762 37 171
Trapezoidal 45/250 1000 1070 45 250
Tile profile 28/200 1000 1090 28 200

Order on COVER width, never overall width. Cover is what one sheet actually covers once side-lapped; the difference is the lap you are paying for but not covering with. Corrugated cover assumes a two-corrugation side lap, which is what high-wind and monsoon exposure calls for — a one-corrugation lap gains about 76 mm of cover and loses weather resistance.

Full Sheet Profiles details →

Cold Drawn Wire

Cold drawn mild steel wire, 2 to 24 SWG, hard drawn or annealed

Cold drawn wire — gauge, diameter and running weight

ASTM A510/A510M, ISO 16120, BS 1052

Cold drawn wire — gauge, diameter and running weight — ASTM A510/A510M, ISO 16120, BS 1052
Gauge SWG Diameter mm Running weight
kg per 100 m m per kg
2 7.01 30.30 3.3
3 6.40 25.26 4.0
4 5.89 21.41 4.7
6 4.88 14.66 6.8
8 4.06 10.18 9.8
10 3.25 6.52 15.3
12 2.64 4.30 23.2
14 2.03 2.55 39.3
16 1.63 1.63 61.3
18 1.22 0.92 109.2
20 0.91 0.52 194.2
22 0.71 0.31 320.8
24 0.56 0.19 519.1

Gauge numbers are Standard Wire Gauge and are trade shorthand, not a tolerance — order on the millimetre. Running weights are nominal, calculated at 7.85 g/cm³; the coil is supplied to weight, so length per coil follows from the gauge.

Full Cold Drawn Wire details →

Highway Guard Rails

W-beam and thrie-beam crash barrier to AASHTO M180

Guard rail beam — sections and running weight

AASHTO M180, hot-dip galvanized to ASTM A123

Guard rail beam — sections and running weight — AASHTO M180, hot-dip galvanized to ASTM A123
Section Thickness Section (mm) kg/m
mm gauge Depth Effective width
W-beam 2.67 12 83 312 10.12
W-beam 3.43 10 83 312 13.01
Thrie-beam 2.67 12 83 508 15.17
Thrie-beam 3.43 10 83 508 19.49

Class A carries 550 g/m² of zinc, Class B 1000 g/m², both measured over the two surfaces. Running weights are calculated from the developed width of the section.

Guard rail panels and posts

AASHTO M180

Guard rail panels and posts — AASHTO M180
Item Dimensions Notes
Size Effective length (m)
W-beam panel 4.32 m overall 4.00 Standard run panel, 8 bolt slots
W-beam panel 3.81 m overall 3.50 Short panel for tighter post spacing
Sigma post 130 × 65 mm 1.8 m to 2.2 m driven length
C post 120 × 55 mm Alternative to sigma where specified
Spacer block To post section Sets the beam off the post face

Panels lap one corrugation at each splice, so the effective length is shorter than the panel itself. Post spacing is set by the containment level the road authority specifies.

Full Guard Rails details →

Need a size that is not on the chart?

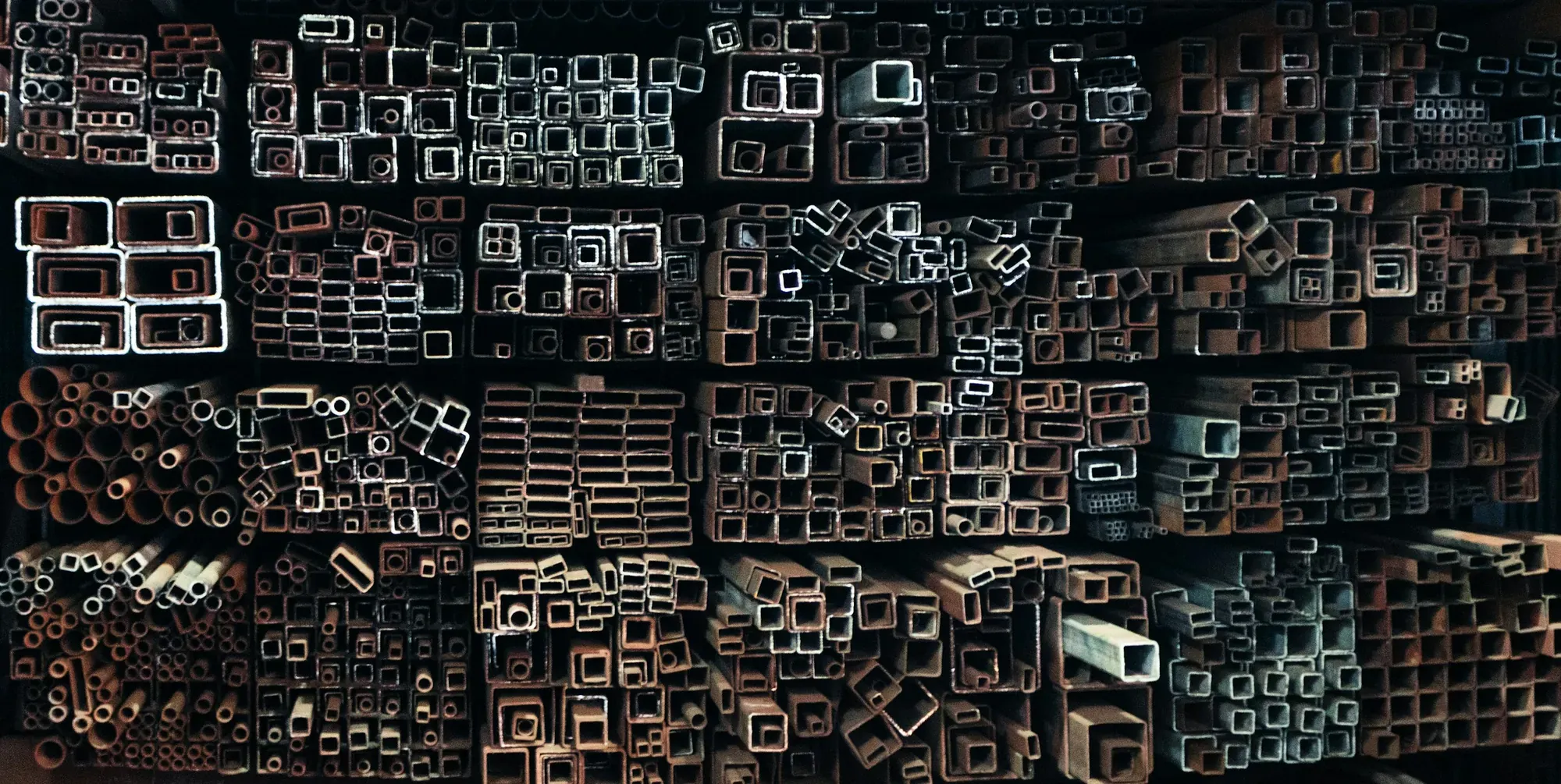

Special sizes in square and rectangular tube are made to order, and galvanized pipe to ASTM A-53 Sch 40 is available on enquiry.

WhatsAppEnquire
